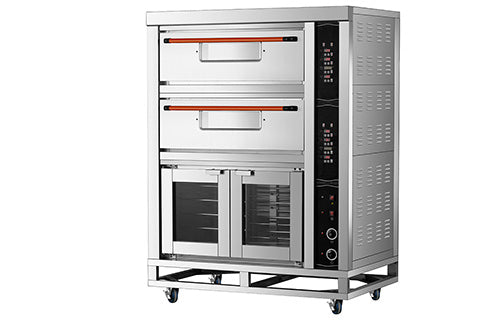

Commercial Deck oven with fermentation box
Commercial Deck oven with fermentation box
Regular price
$0.00 USD
Regular price
Sale price
$0.00 USD
Unit price
/
per
Couldn't load pickup availability
Model, specification; KD-40HX 2 layers, 4 trays + 10 trays
Product size; 1340*840*1800mm
Voltage, power; three-phase 380V 3N～, 13.2KW
Fermentation box power: 2.5KW
Features:

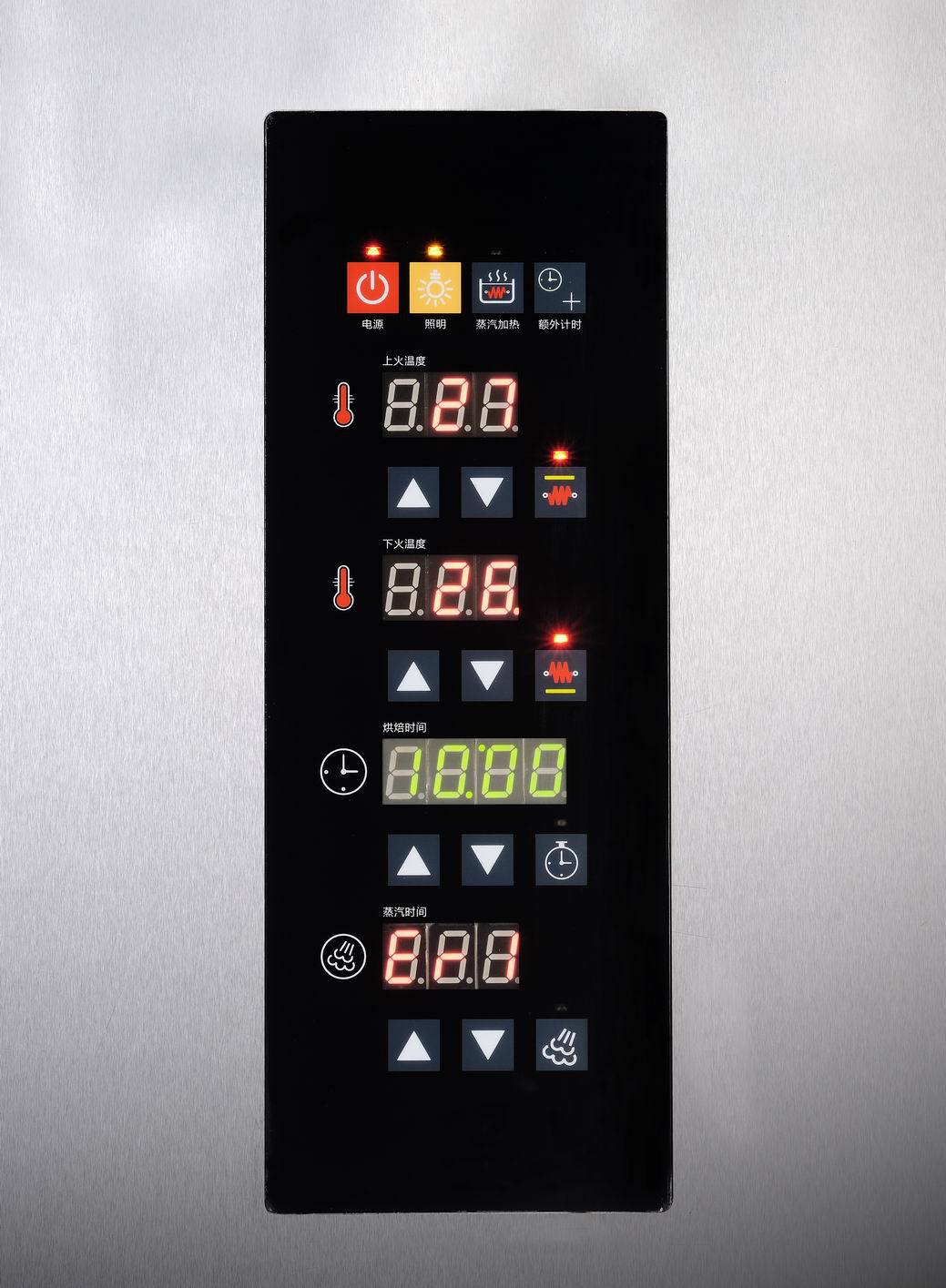

1; Intelligent digital temperature control system, accurate temperature, independent working mode of surface fire and primer, to meet your needs.

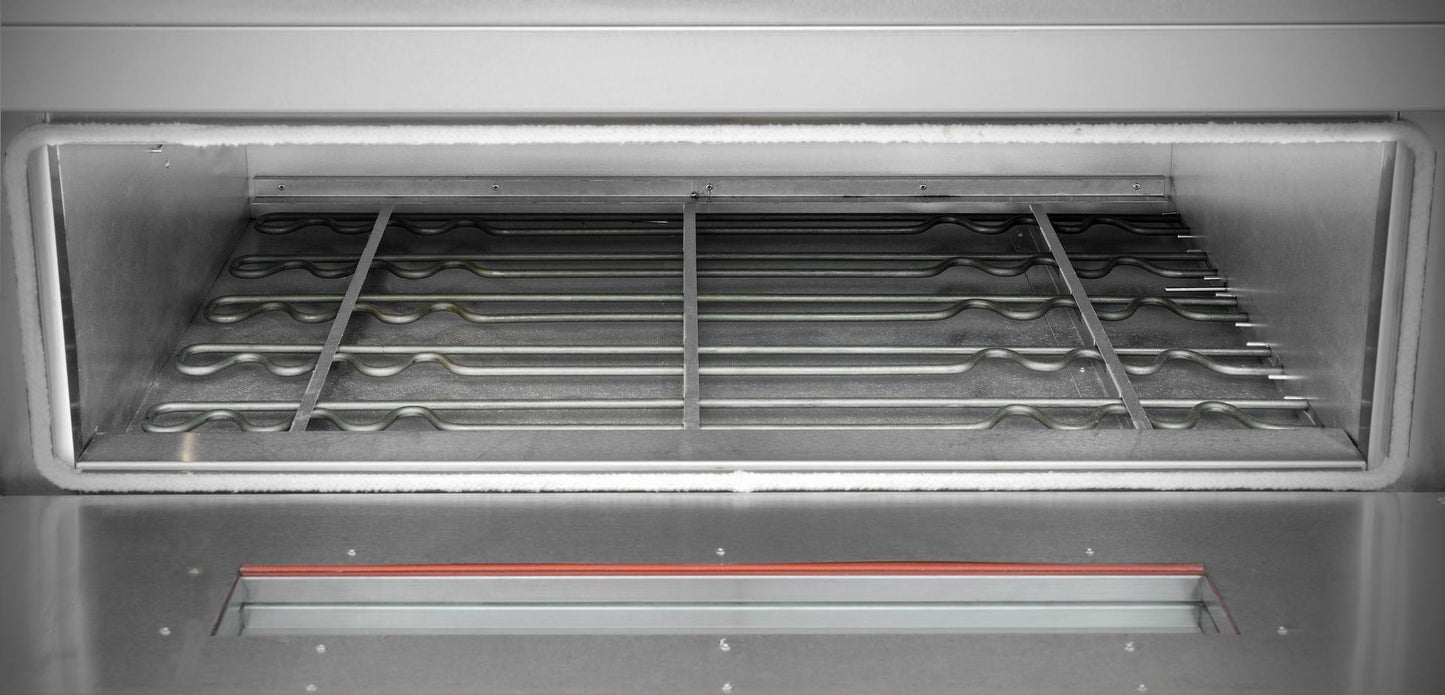

2. High-quality electric heating tubes are evenly distributed inside the oven to achieve uniform distribution of furnace temperature.

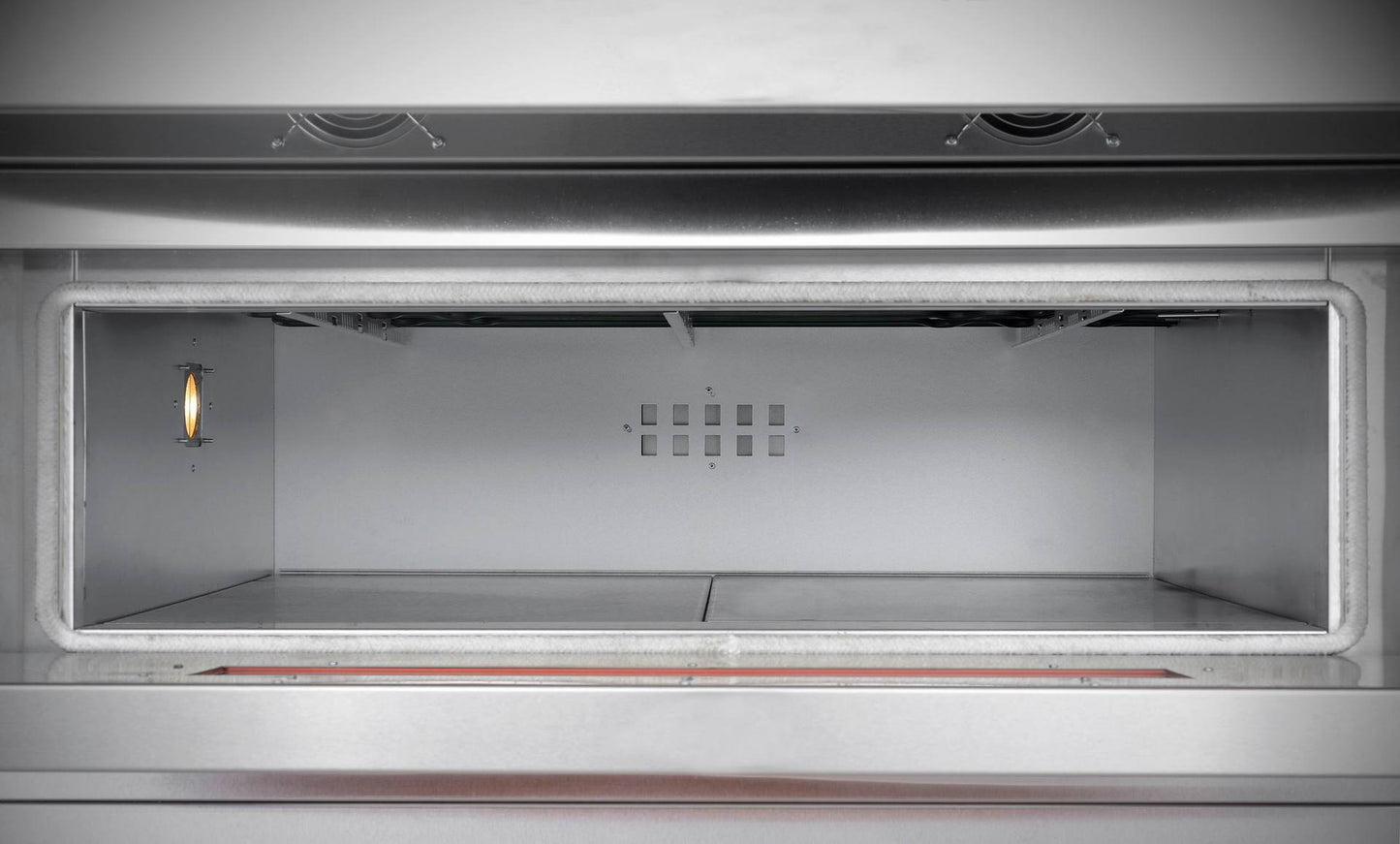

3. The inner tank material is made of 1.5mm thick aluminized steel plate, which is strong and durable, and the fully enclosed welding furnace tank prevents heat loss
4; Inner lift furnace door, easy to operate
5; High-density insulation material, good insulation performance, energy saving than traditional ovens.
6; The fermentation box is equipped with a hot fan for circulation, and the temperature and humidity are even
7; Stretch water tank, no welding, no water leakage, easy to clean
8; Slate and steam can be selected.
9; Can be customized according to your needs.
Installation and precautions:
1. The installation, commissioning, moving and auxiliary installation of the oven must be carried out by professionals. Non-professionals should not operate without permission.
2. The oven cannot be stored and used in the open air, it cannot be used in a place that is particularly humid or where there is water dripping, and it cannot be used in a high temperature environment.
The oven cannot be used in places with flammable and explosive materials or corrosive gases, otherwise it may cause fire. Do not use in places where sand or dust tends to accumulate.
3. The technical parameter plate is on the right side of the oven (see picture). Before installation, please be sure to check that the nature of the power supply used must be consistent with the power supply parameters marked on the oven product parameter plate.
4. There is an exhaust port on the back of the oven, and no flammable, explosive or fire-prone items are allowed near the exhaust port, otherwise it will cause a fire because the temperature of the exhaust port is too high.
Users can install the exhaust pipe by themselves if necessary. The exhaust pipe must be made of non-combustible heat-insulating and flame-retardant materials, otherwise it will cause a fire due to excessive temperature.
The length of the exhaust pipe should not exceed 5 meters, and flammable and explosive items are not allowed on the route of the exhaust pipe.
5. The oven is an appliance that is "permanently connected to fixed wiring". Do not use the plug or connect the power cord to the socket, otherwise it is very likely to cause damage to the oven and other dangers.
When the machine leaves the factory, a power cord is provided randomly. Please connect the power cord to the leakage protection switch of the power supply and connect the ground wire.
The yellow/green double-colored wire in the power cord is the ground wire, which must be reliably connected to the protective ground conductor that complies with the national electrical safety regulations.
6. The oven needs reliable grounding.
It is strictly forbidden to connect the grounding wire to pipes such as water pipes, gas pipes and heating pipes, otherwise it may cause safety accidents.
Product size; 1340*840*1800mm
Voltage, power; three-phase 380V 3N～, 13.2KW
Fermentation box power: 2.5KW
Features:
1; Intelligent digital temperature control system, accurate temperature, independent working mode of surface fire and primer, to meet your needs.
2. High-quality electric heating tubes are evenly distributed inside the oven to achieve uniform distribution of furnace temperature.
3. The inner tank material is made of 1.5mm thick aluminized steel plate, which is strong and durable, and the fully enclosed welding furnace tank prevents heat loss
4; Inner lift furnace door, easy to operate
5; High-density insulation material, good insulation performance, energy saving than traditional ovens.
6; The fermentation box is equipped with a hot fan for circulation, and the temperature and humidity are even
7; Stretch water tank, no welding, no water leakage, easy to clean
8; Slate and steam can be selected.
9; Can be customized according to your needs.
Installation and precautions:
1. The installation, commissioning, moving and auxiliary installation of the oven must be carried out by professionals. Non-professionals should not operate without permission.
2. The oven cannot be stored and used in the open air, it cannot be used in a place that is particularly humid or where there is water dripping, and it cannot be used in a high temperature environment.
The oven cannot be used in places with flammable and explosive materials or corrosive gases, otherwise it may cause fire. Do not use in places where sand or dust tends to accumulate.
3. The technical parameter plate is on the right side of the oven (see picture). Before installation, please be sure to check that the nature of the power supply used must be consistent with the power supply parameters marked on the oven product parameter plate.
4. There is an exhaust port on the back of the oven, and no flammable, explosive or fire-prone items are allowed near the exhaust port, otherwise it will cause a fire because the temperature of the exhaust port is too high.
Users can install the exhaust pipe by themselves if necessary. The exhaust pipe must be made of non-combustible heat-insulating and flame-retardant materials, otherwise it will cause a fire due to excessive temperature.
The length of the exhaust pipe should not exceed 5 meters, and flammable and explosive items are not allowed on the route of the exhaust pipe.
5. The oven is an appliance that is "permanently connected to fixed wiring". Do not use the plug or connect the power cord to the socket, otherwise it is very likely to cause damage to the oven and other dangers.
When the machine leaves the factory, a power cord is provided randomly. Please connect the power cord to the leakage protection switch of the power supply and connect the ground wire.
The yellow/green double-colored wire in the power cord is the ground wire, which must be reliably connected to the protective ground conductor that complies with the national electrical safety regulations.
6. The oven needs reliable grounding.
It is strictly forbidden to connect the grounding wire to pipes such as water pipes, gas pipes and heating pipes, otherwise it may cause safety accidents.
